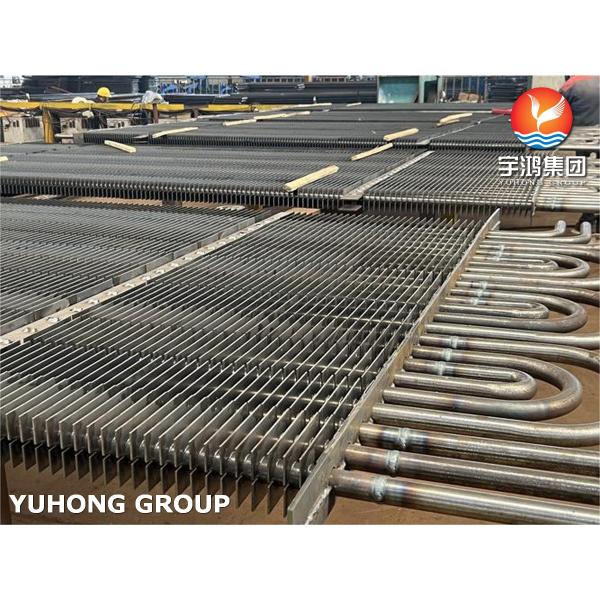

ASME SA179 Low-Carbon Steel U+H Type Fin Tube For Economizers

  • 1
  • 2
  • 3

Brand Name : YUHONG

Model Number : H Fin Tube

Certification : ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Place of Origin : China , Korea

MOQ : 1 PC

Price : 1 - 10000 USD

Payment Terms : L/C,T/T

Supply Ability : 10000 Tons/Month

Delivery Time : 5 - 90 Days

Packaging Details : Ply-Wooden Case + Iron Frame

Material Grade : SA179

Standard : ASME SA179 , ASTM A179

Material : Carbon steel, Alloy steel and Stainless steel

Type of base pipe : Seamless steel pipe

Type of fins : Single H / Double H Type

Application : Widely used for boiler, heat exchanger, condenser, refrigerator, economizer and other parts of heat industry.

Contact Now

Economizer Seamless Steel Square ASME SA179 U+H Type Fin Tube Boiler Pressure Parts
Product Specifications
Material Grade SA179
Standard ASME SA179, ASTM A179
Material Carbon steel, Alloy steel and Stainless steel
Type of base pipe Seamless steel pipe
Type of fins Single H / Double H Type
Application Widely used for boiler, heat exchanger, condenser, refrigerator, economizer and other parts of heat industry
Product Description

The Seamless Steel Square ASME SA179 U+H Type Fin Tube is a specialized component designed for economizers in boiler pressure systems. Engineered to maximize heat transfer efficiency, these tubes significantly improve industrial boiler performance.

The innovative U+H fin design dramatically increases surface area for optimal heat exchange, while the carbon steel construction ensures reliable performance under high-temperature conditions. The square tube configuration provides enhanced structural support and space efficiency.

This high-performance component combines seamless construction, robust material properties, and advanced fin design to deliver superior thermal efficiency and durability in demanding industrial applications.

Chemical Composition
Grade C Mn P S
SA179 0.06-0.18% 0.27-0.63% 0.035% max 0.035% max
Mechanical Properties
Grade Tensile Strength Yield Strength Elongation Hardness
SA179 ≥ 180 MPa (26 ksi) ≥ 325 MPa (47 ksi) Variable based on diameter Typically ≤ 72 HRB
Key Features
  • Material: ASME SA179 carbon steel with excellent heat transfer properties
  • Seamless Construction: Ensures uniform strength and reliability while minimizing leak risks
  • Square Tube Design: Provides structural stability and efficient space utilization
  • U+H Type Fin Design: Combines U and H fins to maximize surface area and optimize heat transfer
Applications

These fin tubes are specifically engineered for critical components in industrial boiler systems:

  • Economizers: Recover residual heat from exhaust gases to preheat feedwater, improving overall thermal efficiency
  • Heat Exchangers: Enhance energy recovery in power generation and industrial processes
  • Industrial Boilers: Increase efficiency and reduce fuel consumption across various industrial applications
